O laser
Descrição:

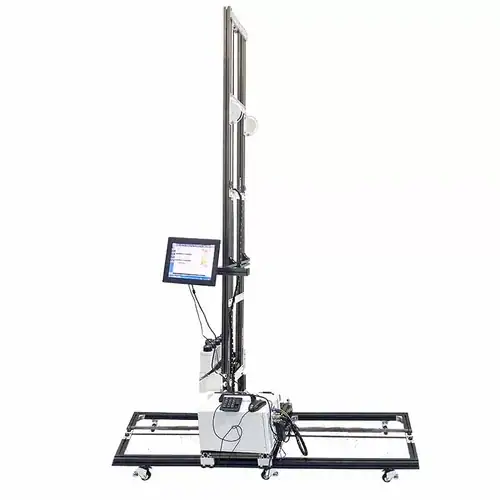

This is the newest model of wall printer. The total weight is 25kg only, one person is easy to carry on to anywhere. Comparing with the old models, this one is in best appearance and best performance. Iray wall printer is the best choice if you want to print vertically on walls.
Vantagens:

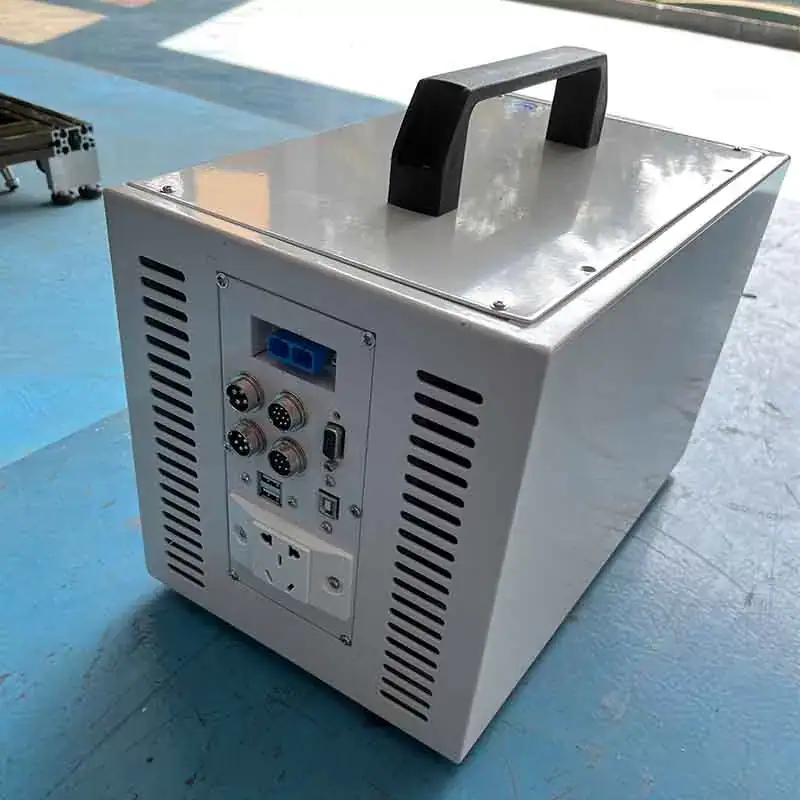

- Easy to move. The machine body is 25 kg only, one person can easily move it around.
- High printing resolution.Up to 1440*2880 dpi can bring very precise printing effect.
- Long-lasting ink- Synthetic uv ink is sensitive to light, it can keep years outside and dry quickly under uv led on printer.
- High cost-effictive. The ink consumption is no more than 0.4$ per square meter, machine draws automatically, bring much profit.
- Fácil de usar – One person is enough to assemble and operate.
Parameters
|
Product
|
3D Wall Printer Machine
|
|||
|
Plate type
|
Laptop
|
|||
|
Print head mold
|
Single/Double (optional)
|
|||
|
Print head type
|
Epson (TX800 DX10 DX7 )
|
|||
|
Printing Resolution
|
720x 1440,720x 2008,1440×1440,1440x 2880dpi
|
|||
|
INK Type
|
water based ink/ uv ink
|
|||
|
Colors
|
4 colors (CMYK)/ 5 colors (CMYK+W)
|
|||
|
Print size
|
Width 2.5M *Length unlimited2 pass, 8-12 square meter per hour
|
|||
|
Printing speed
|
4 pass.12 square meter per hour8 pass,7 square meter per hour16 pass,3 square meter per hour
|
|||
|
Printing height
|
10-20mm
|
|||
|
curving method
|
LED UV lamp
|
|||
|
Software
|
ultrarint & Wellerint
|
|||
|
Motor
|
Servo motor & Stepping motor
|
|||
|
Data port
|
USB3.0
|
|||
|
Language
|
English
|
|||
|
lmage format
|
Psd,Cdr,JPEG,Jpg,PNG,BMP,Tiff,EPS,Al,PDF etc
|
|||
|
Operating system
|
Microsoft Windows XP/778/9/10
|
|||
|
Power supply
|
220V/110V
|
|||
|
Operating environment
|
0℃-50℃(32°F-122°F)10%-70%
|
|||
|
Storage environment
|
-21℃-6o℃ (-5° F-140 ° F.)10%-70%
|
|||
|
Machine size(L*W*H):
|
1.56*0.8*0.85m (folded)/ 3.06*0.76*0.85m (assembled)
|
|||
|
Net weight
|
25kg
|
|||
| Rails length | 6 metros(support cuntomize) | |||
